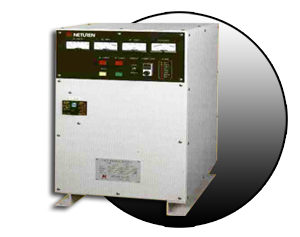

SOLID STATE GENERATOR(2.5~60KW)

Features: ENERGY SAVING： Due to the high efficiency of the solid state inverters, both power and required cooling water is reduced. COMPACT DESIGN： The comprehensive semiconductor design reduces the installation space required for the inverter. The total dimension is reduced to around 1/4 of the vacuum tube type  H.F. generator. Depending on customers' requirements, can be installed away from the oscillation portion and the electric cabinet. EASY MAINTENANCE  AND INSPECTION： Using low voltage to operate, it is easy to maintain and service the machine, thus saving on repair and maintenance cost. PROTECTION FEATURES： With the full protection against: Coil touch, no load operation, over load operation, wrong operation. 2.5~60KW Standard Specifications ITEM OUTPUT CAPACITY(KW) 2.5 5 10 20 40 60 INPUT OUTPUT VOLTAGE(V) 3PHASE，200/220V，50/60HZ CAPACITY(KW/KVA) 3.5 6.5 13 26 52 78 COOLING WATER COMMON SPECS water pressure:1.5~2.5kgf/cm2，water temperature:25º~38ºC WATER VOLUME(l/min) 5 10 20 30 WTAER 10A 15A EXTERNAL DIMENSIONS HEIGHT,H (mm) 650 1350 1550 1660 WIDTH,W (mm) 440 550 800 700 DEPTH,D (mm) 350 440 600 630 WEIGHT (kgf) 30 50 170 200 400 400 ．FREQUENCY RANGE:1~400KHZ ．WE WELCOME INQUIRIES ON MACHINES WITH SPECIAL SPECIFICATIONS 2.5~60KW COMPARISON (SOLID STATE GENERATOR / VACUUM TUBE GENERATORS) POINTS FOR COMPARISON SOLID STATE GENERATOR VACUUM TUBE OSCILLATOR REMARKS CONVERSION EFFICIENCY(%) 90-95 65-75 OUTPUT/POWER INPUT POWER CONSUMPTION(KVA) 26 40 3 PHASE,200/220V DC VOLTAGE(KV) 0.3 9   COOLING WATER FLOW(L/MIN) 10 30 60% REDUCTION IN  WATER CONSUMPTION DIMENSIONS(MM) 550(W)*600(D)*1350(H) 1300(W)*1030(D)*2050(H) 80% REDUCTION IN FLOOR SPACE WEIGHT(KGF) ABOUT　200 ABOUT　1200 53% REDUCTION IN TOTAL WEIGHT STARTING & STOPPING MOMENTARY THE VACUUM TUBE FILAMENT REQUIRESPREHEATING & COOLING   SERVICE LIFE SEMI PERMANENT AROUND 5000-10000 HOURS   WAVE LEAKAGE SMALL LARGE   OPERATION COST LOW DUE TO HIGH EFFICIENCY, AND REDUCED COOLING WATER CONSUMPTION HIGH DUE TO LOW EFFICIENCYAND INCREASED COOLING WATER CONSUMPTION

SOLID STATE GENERATOR

Features: 　 ENERGY SAVING： Transistors are activated with a load power factor of 1 to ensure high conversion efficiency for the inverter. This results in a 30% reduction in input power and an 80% reduction in the required cooling water. COMPACT DESIGN： The comprehensive semiconductor design reduces the installation space required for the inverter. EASY MAINTENANCE AND INSPECTION: Inspection and testing can be done safely due to low circuit voltages not exceeding 600V.Maintenance-free components are arranged on the rear panel. Essential components such as transistors and PC boards are concentrated on the front panel for easy maintenance access. PROTECTION FEATURES: With the full protection against: Coil touch, no load operation, over load operation, wrong operation.

Output Output capacity(kW) 60 100 150 200 250 300 350 400 500 600 800 1000 Frequency(kHz) 60~400KHZ Intput Voltage(V) 3Ø, 220/380/415/440V±10% , 50/60Hz Capacity(kVA) Output(kW)÷ 0.9=Input(kW)  Output(kW)X 1.3=Input(kVA) Cooling Water Common specifications Water pressure  2.5~3.5kgf/cm2   Water temperature 25~40℃ Water flow(L/m) Water inlet/outlet dia 100 120 200 260 400 500 600 40A 65A 50A*2 65A*2 External Dimensions Height H(mm) 1750 2050   Inverter W1(mm) 800 950 1150 1800 2300 3300 4300 Cooling system W2(mm) 500 600 Total Width W0(mm) 1300 1450 1650 2350 2800 3900 4900 Depth D(mm) 950 1200 1500 Mass(kg) 1600 1700 1900 2000 2200 2800 3000 3200 3400 3600 3800 4000 Cooling Water System with dual ratings：Lower rating is for equipment with cooling water circulation while higher rating is for equipment without cooling water circulation system. Feel free to contact us for information on inverters with other output capacities and frequencies not indicated in the above tables. For product improvement, specifications and external appearance are subject to change without notice. Output Output capacity (KW) 100 200 300 400 500 600 800 1000 1200 1600 2000 Frequency(KHZ) 1 ~ 50 KHZ Input Voltage(V) 3Ø , 220/380/415/440 V± 10% , 50/60 Hz Capacity (KVA) Output(kW)÷0.9=Input(kW)  Output(kW)X 1.2=Input(kVA) Cooling Water Common specifications Water pressure 2.5 ~3.5kgf/cm2 Water temperature 25~40℃ Water flow(L/m) Water inlet/outlet dia 30/40 60/80 85/110 100/130 120/160 140/190 230/300 275/300 340/440 500/650 520/680 20A 25A 40A 40A/50A 65A 65A*2 80A*2 External Dirnensions Height H(mm) 1950 1950 1950 2350 2550 Inverter W1(mm) 800 650 1300 1600 1400 1700 2500 3500 5000 Cooling system W0(mm) 500 600 700 900 Total Width W0(mm) 1300 1550 1900 2300 2100 2400 3200 4200 5900 Depth D(mm) 800 1000 1300 1200 1500 1200 Mass(kg) 1200 1400 1700 1900 2400 3000 2600 3200 3800 6000 7200 Cooling Water System with dual ratings：Lower rating is for equipment with cooling water circulation while higher rating is for equipment without cooling water circulation system. Feel free to contact us for information on inverters with other output capacities and frequencies not indicated in the above tables. For product improvement, specifications and external appearance are subject to change without notice.
