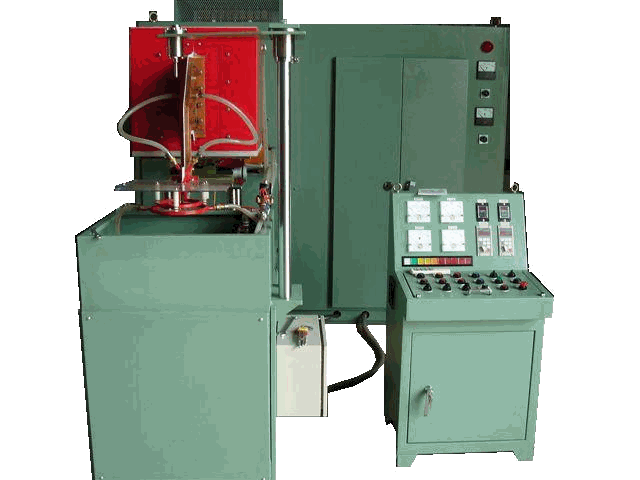

VACUUM TUBE TYPE HIGH FREQUENCY GENERATOR

 SPECIFICATIONS

GENERATER
MODEL
(HIM)

POWER INPUT-3P 60,50 HZ

OUTPUT

FREQUENCY(KHZ)

WATER
REQUIRED(L/M)

CABINET
DIMENSIONS
(mm)

KVA

VOLTAGE

 WIDE
 		DEEP
 		HIGH
0201
 		5
 		220,380 2KW 800 5 560 600 920
0601
 		12
 		6KW 800 12 800 800 1000
1501
 		30 15KW 450 30 900 750 1600
3001
 		60 30KW 100-450 60 1700 1200 2000
5001
 		100 50KW 50-400 90 1700 1200 2000
7501
 		150 75KW 100 2100 2100 2000
IK001
 		200 100KW 150 2100 2100 2000
IK501
 		300 150KW 300 * * *
IL001

400

 200KW 350 * * *

 ＊We welcome inquiries on machines with special specifications＊
